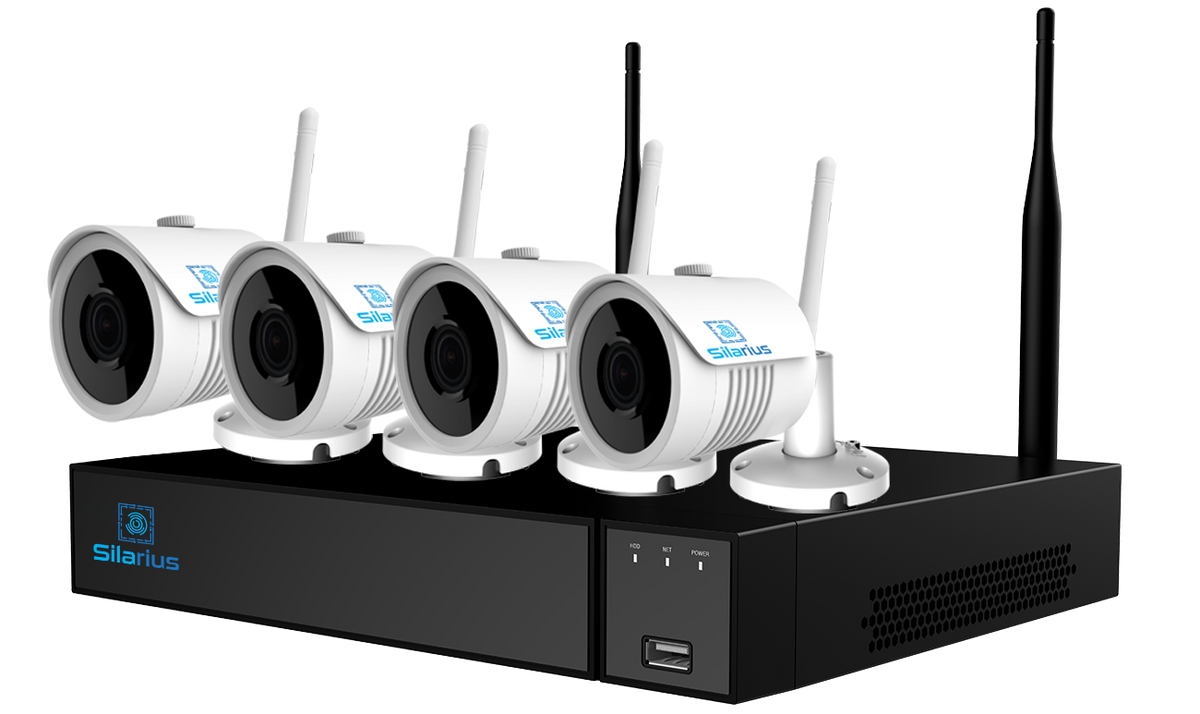

Silarius SIL-4CHNVRWIFI8MPKIT4 AI 4CH 8MP WiFi kit, 4K, 3.6mm lens (NDAA Compliant), 4TB HDD

The Silarius SIL-4CHNVRWIFI8MPKIT AI 4CH 8MP WiFi kit - NDAA Compliant for the ultimate 4K experience with a 3.6mm lens
With the Silarius SIL-4CHNVRWIFI8MPKIT AI 4CH 8MP WiFi kit, you don't have to worry about sacrificing quality for convenience. This easy-to-use system is NDAA compliant and provides superior image clarity with its 4K resolution and 3.6 mm lens. Whether it's used in a business or residential setting, this dependable security solution will provide all the coverage you need without any of the hassle!

Package
NVR: 1
Camera: 4 x 4K 8MP mini bullets
WIFI Range: No Obstacles 350m Max
Cable: 1 x 1m Net Cable
Mouse: 1xUSB 2.0 Mouse
Adaptor: 1xDC 12V 2A for WIFI NVR, 4xDC 12V 0.5A for WIFI IP Camera
Weight: 5.3kg/SET
Camera Model :SIL-4CHNVRWIFI8MPKIT

Camera
Image Sensor: 1/2.5" High-resolution CMOS Sensor
Resolution: 8MP (4K)
Effective Pixels: 2608(H)*1952(V)
Compression: H.264/H.265
TV System: PAL/NTSC
Electronic Shutter Time Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
S/N Ratio: ≥52dB
Scanning System: Progressive
Video Output: Wireless network
Reset Button: Yes

Lens Type
Focus Length: 3.6mm
Focus Control: Fixed
Lens Type: Fixed
Pixels: 8M Pixels
Night Vision
Infrared LED: 42μ x 2PCS
Infrared Distance: 25M
IR Status: Auto Control
IR Power: On Auto Control

Network
Ethernet : Yes
Protocol: TCP/IP,ICMP,RTP,RTSP,RTCP
ONVIF : No
P2P : No
POE : No
Main Stream 1: 3072*2592@1-15fps(default resolution:3072*2592/frame rate:15fps/bit rate:2.3Mbps)
Main Stream 2: 2592*1944@1-15fps(default resolution:2592*1944/frame rate:15fps/bit rate:1.8Mbps)
Main Stream 3: /
Sub Stream 1: 1280*720@1-15fps(default frame rate:15fps/bit rate:1Mbps)
Sub Stream 2: /
Sub Stream 3: /
Tri Stream: /
IE Brower: /
Smart Phone: /
Wireless
Antena: 3dbi
Hotspot: NO
Wi-Fi: Wi-Fi(IEEE802.11b/g/n)
WIFI Range: No obstacles 300m Max.

AI Function
Intelligent Analysis: Humanoid Detetion

Camera Features
Day/Night: Color/ B&W (IR-CUT )
Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control)
Corridor Pattern :/
ROI: /
Defog Mode: /
BLC: YES
HDR :/
WDR :YES
Motion Detection: Support
Privacy Masking: 3 Rectangular Zone
Recording Mode: NVR
Language: /

Interface
Audio: /
Alarm: /
SD Card Slot: /
RS485: /

General
Housing: Metal , IP67
Anti-cut Bracket: YES
IR Cut Filter: YES
Operation Temperature: -10℃ ~ +50℃ RH95% Max
Storage Temperature: -20℃ ~ +60℃ RH95% Max
Power Source: DC12V±10%, 500mA
Dimension: 157(W) x 70(H) x 66(D)mm
Weight: 650g

NVR:
Main Processor: ARM Cortex A7 Quad-core Processor
Operating System: Embedded LINUX

Video
Input: 4CH (3072×2592, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 1 HD

Audio
Input: /
Output: 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression: standard G711u, G711a, G726

Alarm
Sensor Input: NO
Output: NO
Motion Detection: 4 Channel, MD Zones: 396 (22 × 18)
Trigger Events: Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

AI Function
Face Comparison: 1 channel video stream face Comparison(1 face databases with 10 face images)

Display
HD1 Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HD2 /
VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split 4CHxD1/4CHx1080P@15fps/4CHx1440*1080@15fps/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Alarm

Recording
Video Compression: H.264/H.265/H.264+/H.265+

Resolution 8MP(3072×2592),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),
960P(1280x960),720P(1280 ×720),D1 (720×576/720×480)
Record Rate PAL :8MP@4×15fp, 5MP@4×25fp,4MP@4x25fp,3MP@4 ×25fp,1080P@4×25fp, 960P@4×25fp,720P@4×25fp, D1@4×25fp
NTSC: 8MP@4×15fp, 5MP@4×30fp,4MP@4×30fp,3MP@4×30fp,1080P@4×30fp, 960P@4×30fp, 720P@4×30fp, D1@4×30fp
Record Mode: Manual\Timer\Motion Detection\Smart Alarm

Playback & Backup
Local Sync Playback: 1CH 8MP@15fps, 1CH 5MP@30fps, 1CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@20fps, 4CH 960P@30fps, 4CH 720P@30fps
Decode Capability: 4CH 1080P@20fps
Remote Sync Playback: YES
Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm
Backup Mode Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom

Network
Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface
Incoming Bandwidth: 60MB
Network Functions: TCP/CP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP, p2p
Onvif Version: Support Onvif 2.4
Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software: Support Windows 7/ Windows 8/Windows 10
Cloud Support(P2P) :Yes
Smart Phone: iPhone, iPad, Android, Android Pad
POE /
WIFI Support, WIFI Range: No Obstacles 300m Max.

Storage
Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)
Capacity: Up to 8TB capacity
eSATA /

General
Language: Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
USB Interface: 1 USB 2.0 Interfaces
Power Supply: DC12V/2A
Working Environment :-10~55℃/10~90%
Dimension(W×D×H): 260*215*43(mm)
Weight: 2.0KG (without HDD)
