Aperion Audio

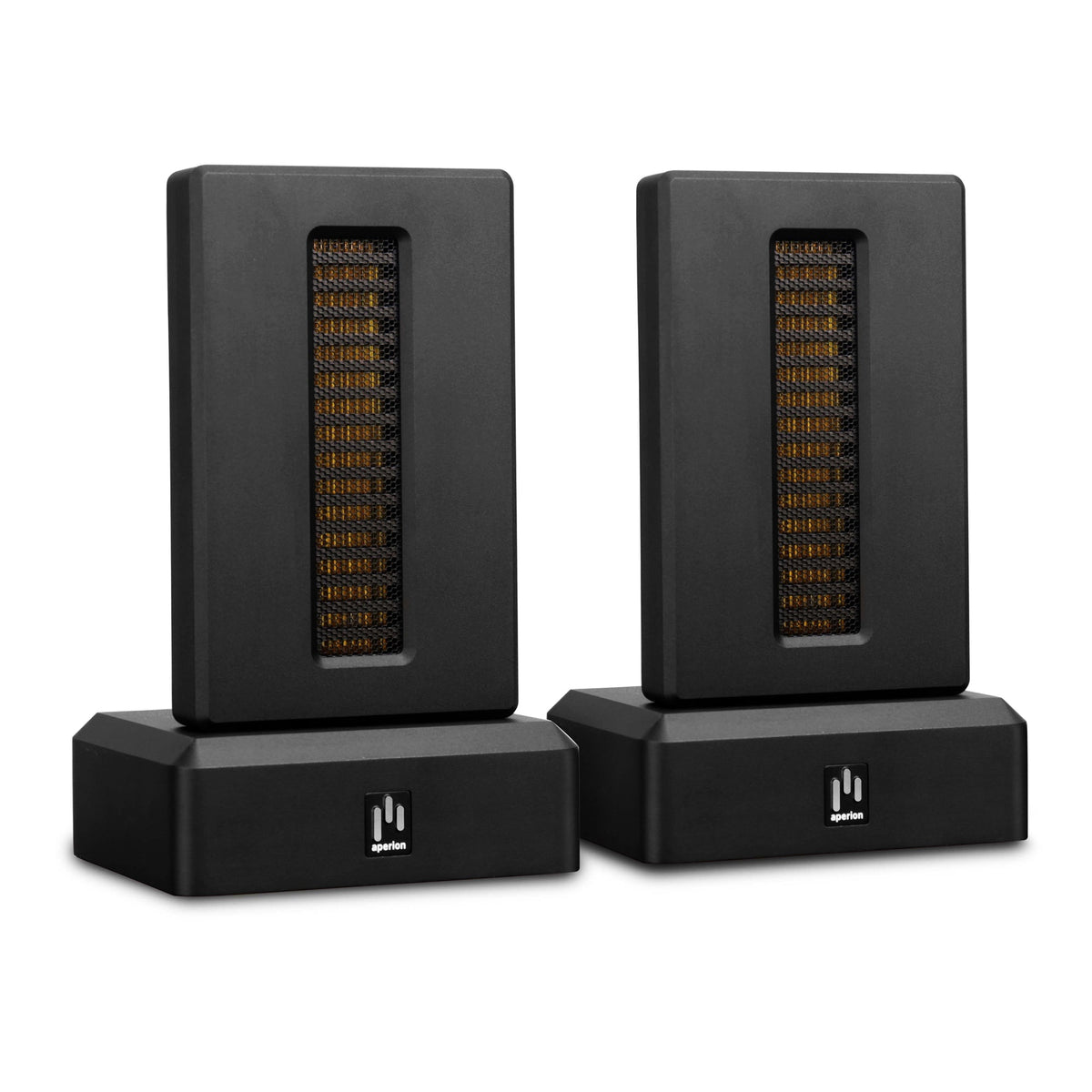

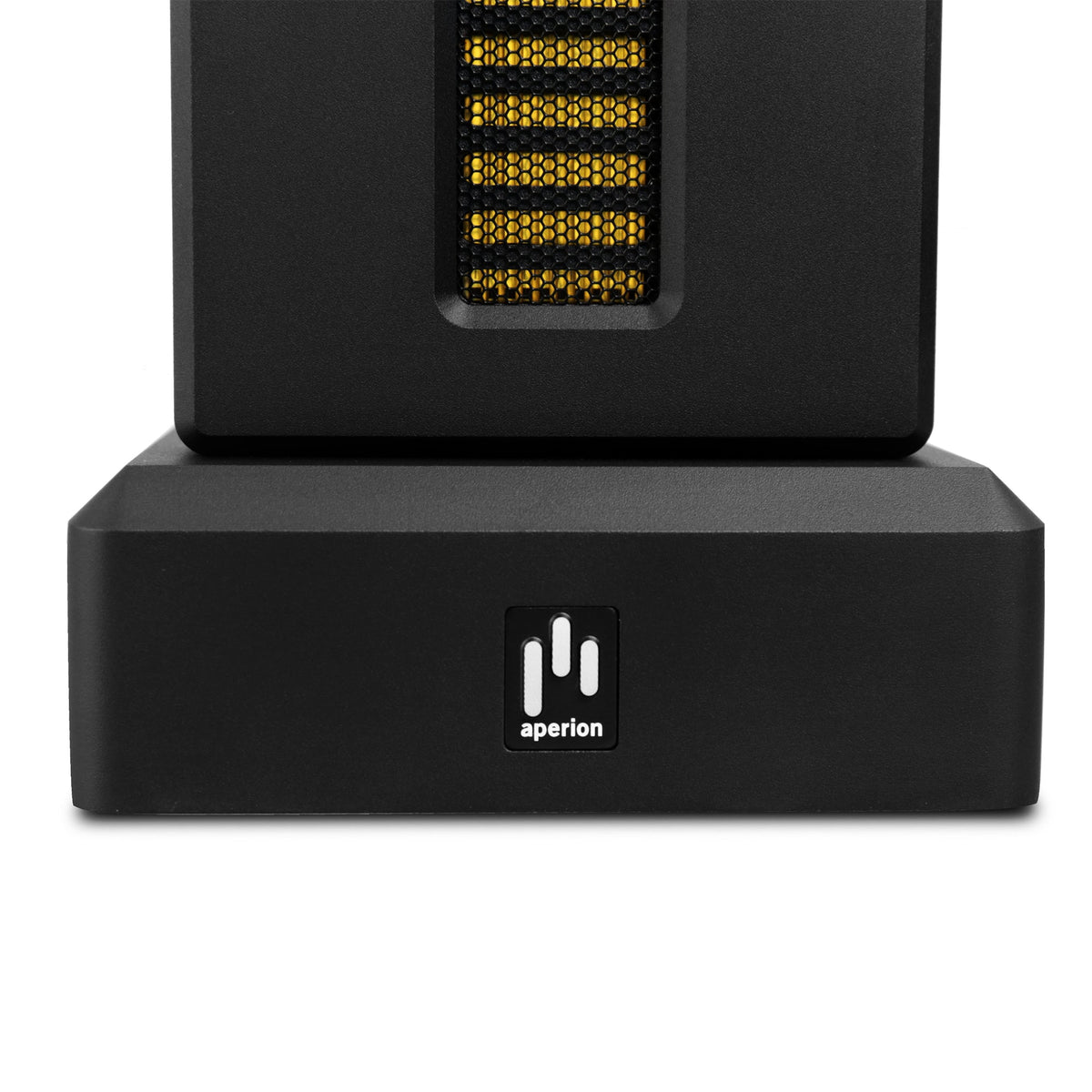

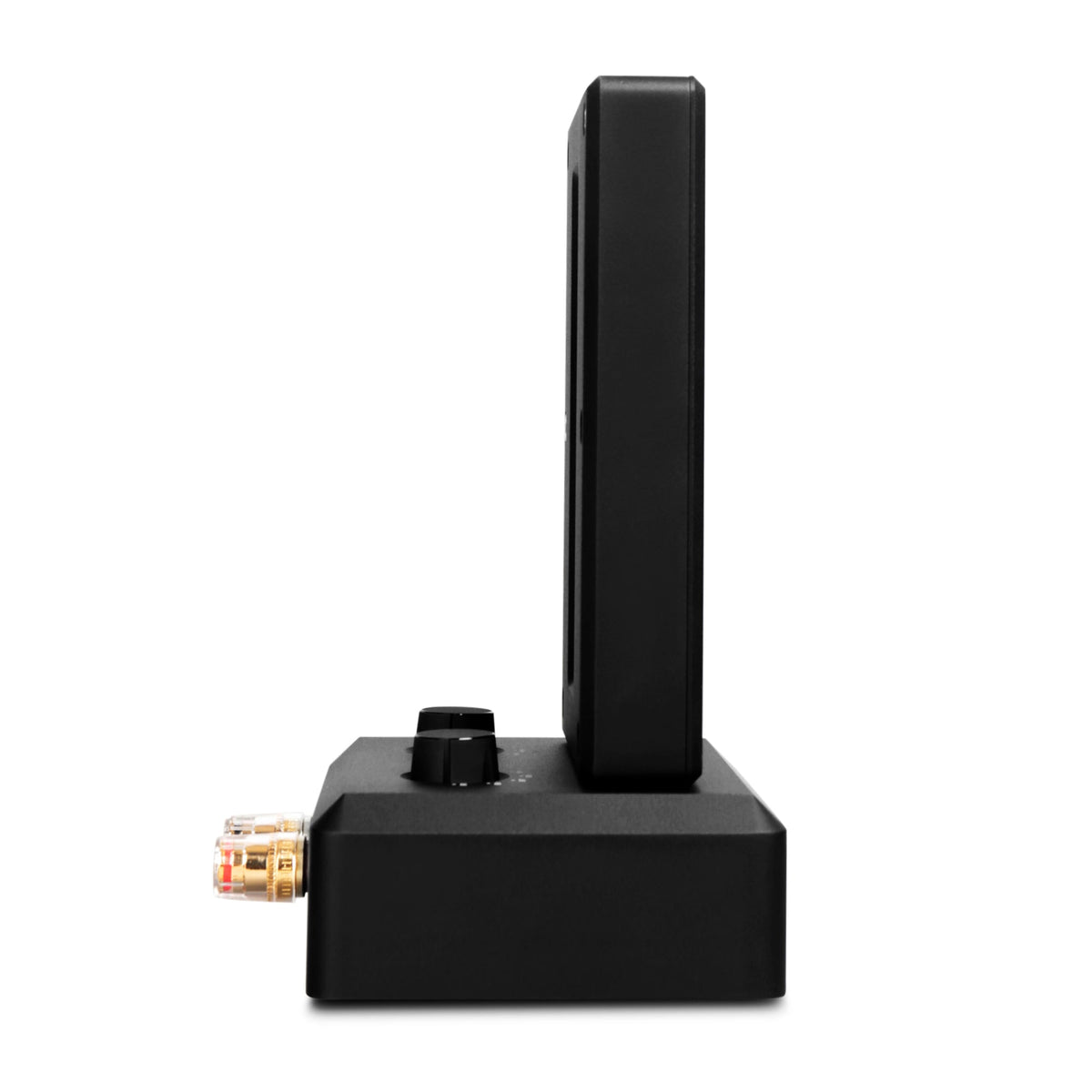

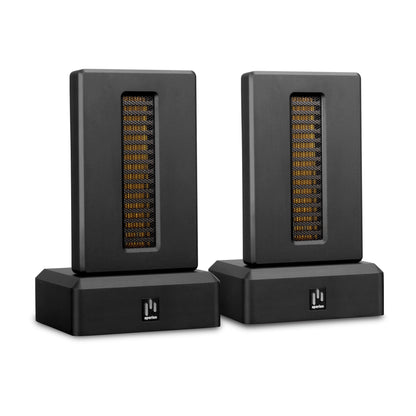

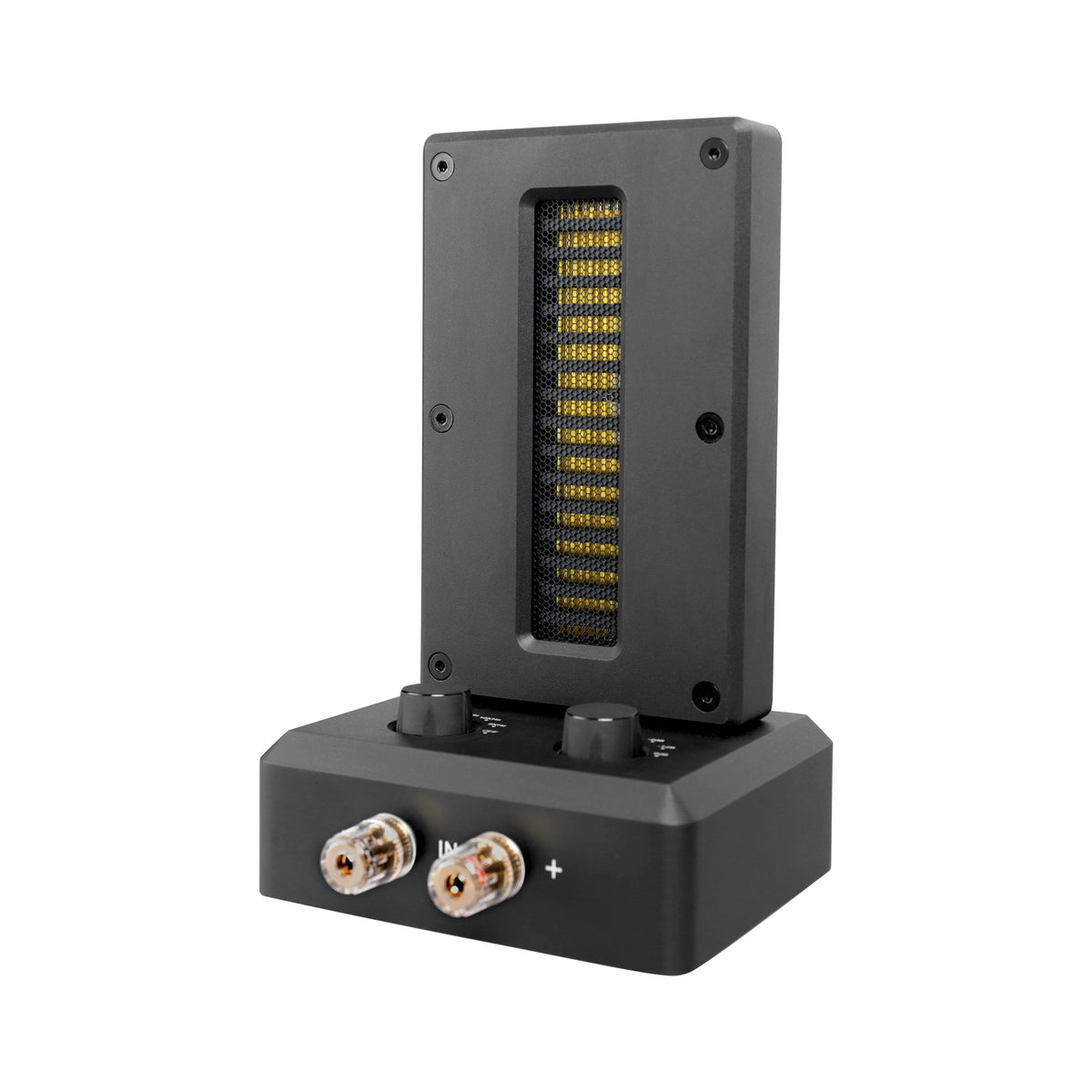

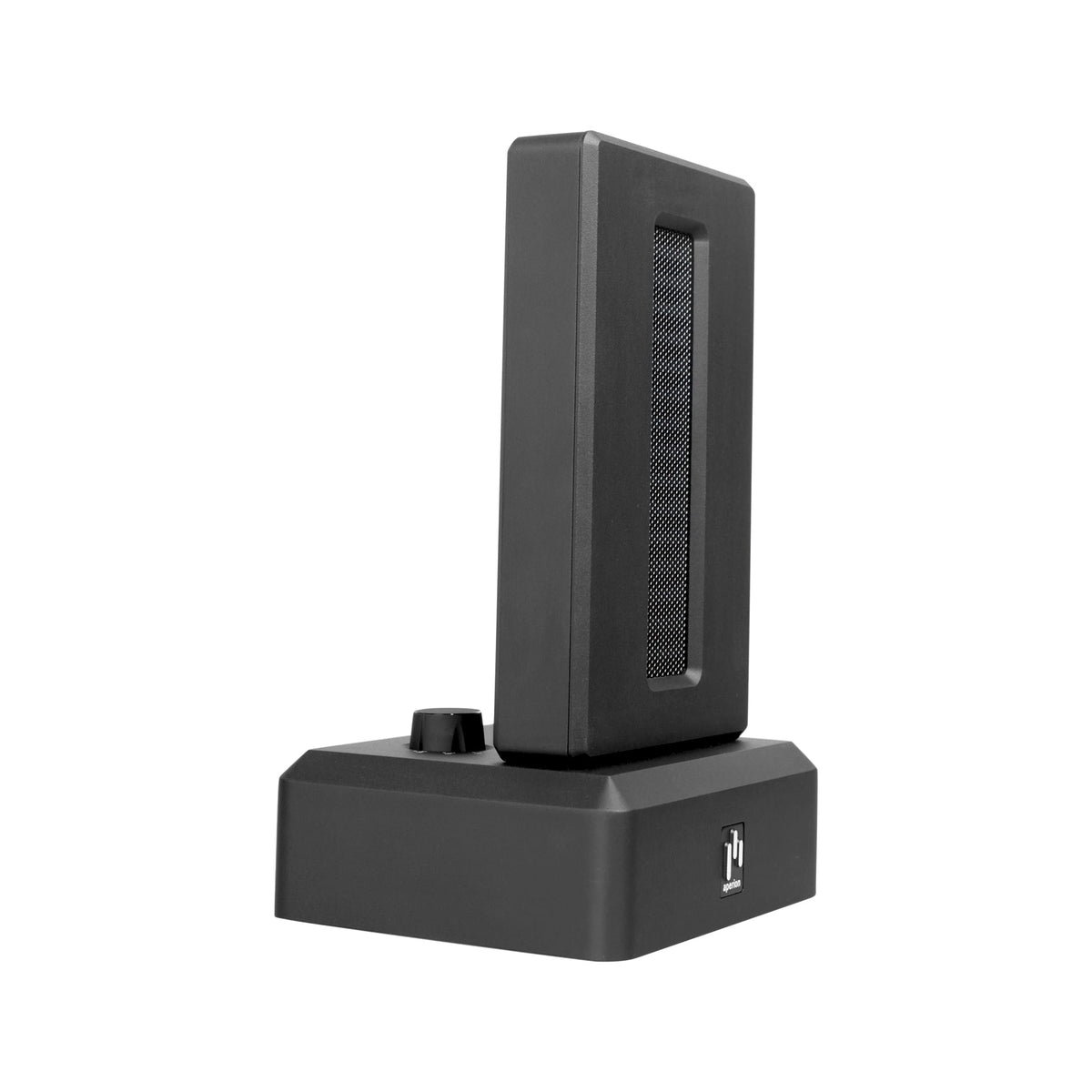

HST Dual AMT Super Tweeter Pair
HST Dual AMT Super Tweeter Pair
Couldn't load pickup availability
Share
High Sensitivity HST Dual Firing AMT Ribbon Super Tweeter Pair
The HST Dual AMT Super Tweeter represents an advanced addition to auditory systems, featuring an upper cut-off frequency exceeding 30 kHz. This capability allows it to cover an extensive frequency spectrum that extends into the ultrasonic range. As a result, listeners can appreciate each nuance of their music with remarkable clarity and precision, creating an immersive sonic experience.
Prior to 2024, you might have been acquainted with the well-known Planar, Aluminum Ribbon, and AMT Super Tweeters, however, their highest sensitivity only reaches up to 96 dB. This means that some of our customers, who have speakers exceeding 96 dB, are unable to fully experience the allure of our super tweeters.
We have recently introduced the "HST" super tweeter, a dual firing AMT super tweeter with high sensitivity. This unit is built on the foundation of the DST technology, utilizing a larger size, higher efficiency, and more powerful AMT unit. With an impressive effective sensitivity of 103 dB, it can be seamlessly paired with any speaker that has a sensitivity up to 103 dB.
Our new High Sensitivity Dual AMT Super tweeter delivers quick dynamics and an ultra-clear high frequency transient response, expanding the atmospheric sound stage like you've never heard before. The light, airy highs produced by our AMT super tweeter are incredibly smooth, providing an effect which transports you even further into the sonic abyss of your music and movies.
Aperion Audio has introduced our newest HST-high sensitivity AMT super tweeter speaker, which utilizes the neodymium magnetic radial magnetic field (NRT) technology. In this design, the powerful magnetic poles are positioned on both sides of the sound membrane, resulting in a centripetal convergence that directly drives the sound unit. As a result, the radial magnetic field becomes more uniform and stronger, leading to improved sound density and off-axis response. Additionally, this technology eliminates any magnetic loss, resulting in higher magnet efficiency and increased sensitivity with minimal distortion.
After years of development, we are pleased to introduce the High Sensitivity Dual Air Motion Super Tweeter-HST. The AMT driver measures 5 x 1 inches (128mm x 25mm) in size. The Kapton has a thickness of 12.5 μm, while the Aluminum is 20 μm, resulting in a total thickness of 45 μm. Sensitivity testing was conducted using 2.83v @ 1 meter. The crossover utilized is Butterworth. The components include FR4 pcb board and Aperion custom capacitors. High purity copper internal cables are used to minimize resistance. The transducer features a single ribbon design with dual firing open baffle, ensuring even distribution of the driving force across the vibrating element.
Specification
| Frequency Response: | 8 Khz-30 Khz |
| Impedance: | 8 Ohms |
| Sensitivity: | 103 dB |
| Crossover Points: | 8K, 10K, 12K, 14K, 16K & off |
| Treble Adjust: | 0,-1dB,-2dB,-3dB,-4dB,-5dB |
| Crossover Slope: | 12 dB/octave |
| Recommended Power: | 10-250 Watts |
| Tweeter: | APERION Dual Firing Air Motion Transformer |
| Product Weight: | 4.6 Lbs / 2.1 Kg per each |
| Product Dimensions: |
H 8.1“ x W 4.9" x D 5.1" H 205mm x W 125mm x D 130mm |
| Placement Location: | Add on top of speakers |
| Shipping Weight: | 10.4 Lbs / 4.7 Kg per pair |
| Shipping Dimensions: |
L 13" x W 7.5" x H 8" L 340mm x W 190mm x H 206mm |
Features
Dual Air Motion Transformer Ribbon tweeter
|
Aperion's Dual Air Motion Transformer tweeter enhances the clarity, speed of sound reproduction, and artistic refinement of nearly all loudspeaker configurations. It showcases a natural richness in the high-frequency range, serving as a delightful reminder of our profound admiration for high-quality audio. |
5-point Crossover + OFF
| Select from 8, 10, 12, 14, or 16 kHz to adjust the Super Tweeter floor for optimal integration with your speaker system. When set to "OFF," the Super Tweeter will be inactive. The 8 kHz option offers the greatest overlap with your current tweeter, whereas the 16 kHz option provides minimal overlap, focusing on the higher end of the frequency spectrum. The crossover slope is set at 12 dB/octave. |
Treble Adjust Knob
|
Too much of a good thing? Use the treble adjust to reduce the output of the Super Tweeter. Just turn the dial to adjust to your taste, down to -5dB. |
Easy Connection
| By sharing the binding posts of the speaker it is paired with, the Super Tweeter can draw power from the main speaker without requiring a direct connection to an amplifier. |
Aluminum alloy metal enclosure
| Aluminum alloy metal enclosure，The HST uses a sturdy aluminum alloy metal enclosure to withstand the fast vibrations of Its diaphragm. The aluminum alloy minimizes noise and undesriable vibrations, leaving nothing but the air movements captured in your music. The HST aluminum enclosure not only provides acoustic benefits, but it completes the aesthetically pleasing design. |

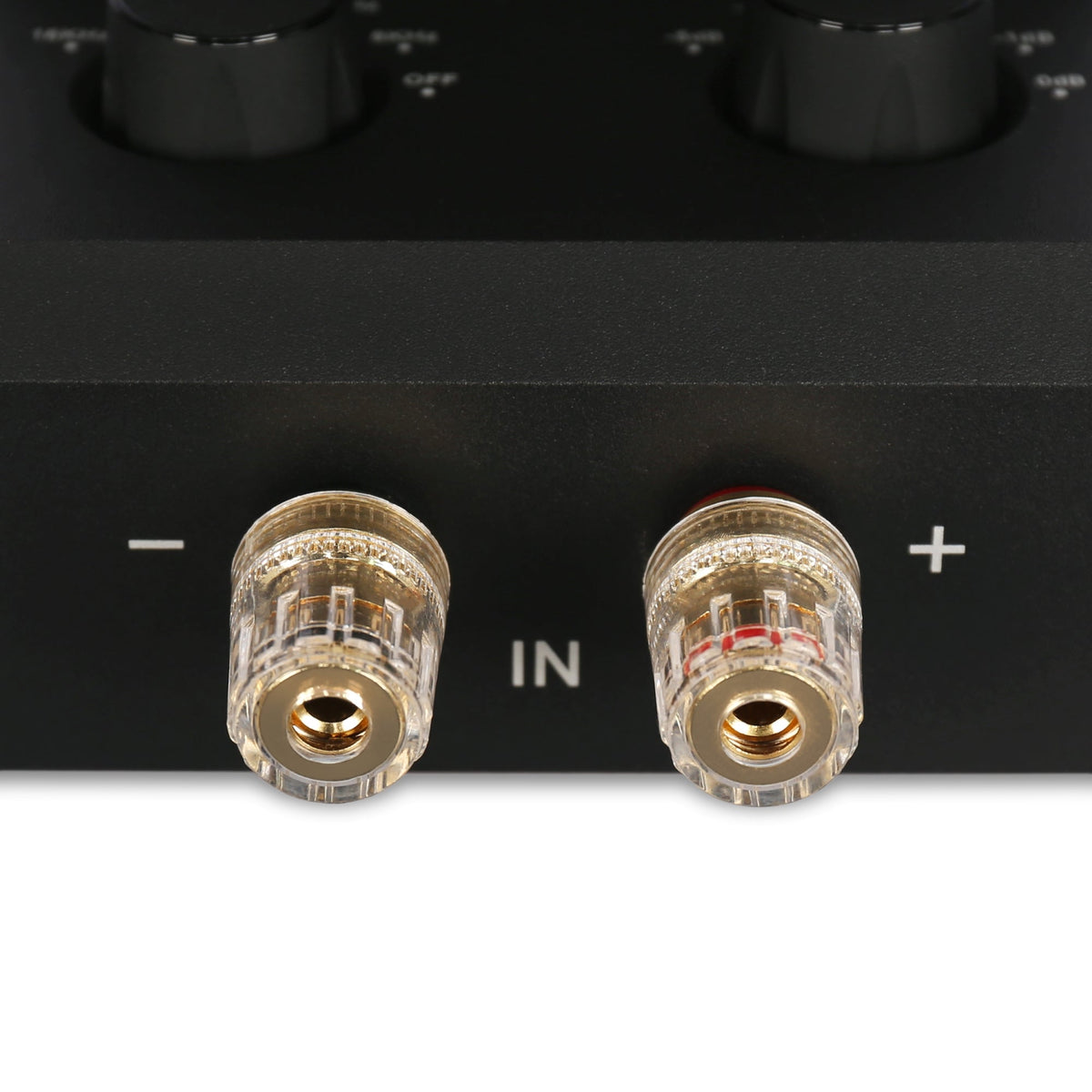

5-Way gold-plated binding posts
| The 5-way gold-plated binding posts let you connect your speakers any which way you choose: bare wire, banana plugs, spades, round pins or flat pins. |
Radial magnetic design
| The NRT technology utilizes neodymium magnetic radial magnetic field to position strong magnetic poles on either side of the sound membrane. This design enables centripetal convergence and direct drive of the sound unit, resulting in a more uniform and stronger radial magnetic field. As a result, the sound density and off-axis response are significantly improved, while magnetic loss is eliminated. This higher magnet efficiency leads to increased sensitivity and reduced distortion. |
High-power amt diaphragm design
| With its specially designed high-power AMT diaphragm material, Aperion Audio has achieved a significant increase in bearing power compared to traditional AMT diaphragm materials. The incorporation of a high-efficiency radial magnet design further enhances the sensitivity, allowing it to reach an impressive 103 dB. |
How to Connect Super Tweeter
The chart below can be used to help match the AMT Dual Firing Super Tweeter with your existing speaker`s sensitivity
Graph showing the extended frequency response of our Dual Air Motion Transformer AMT Ribbon Super Tweeter on the 14 kHz and16 kHz settings when paired with a bookshelf speaker:
Key Features
- Frequency Response up to 30 kHz
- Sensitivity to 103 dB
- 5 Adjustable crossover points + OFF
- Up to -5 dB Treble Adjust Knob
- Aperion radial magnetic design
- High-power amt diaphragm design
- 5-way gold-plated binding posts
- 3-year Warranty
Package Contents:
- High Sensitivity Dual Firing AMT Super Tweeter Speakers x Two (2) Pcs
- Manual Download Card x One (1) Pcs
Download:
