Aperion Audio Energy 7 Channel Home Theater Power Amplifier – E7
Introducing the Energy E7, a 7 channel power amplifier. If you really care about getting the best sound quality for music and movies, you might want to consider using a separate preamp and power amplifier instead of a regular home theater receiver. This setup has its advantages: since the preamp and power amplifier are in separate units, there's less chance of interference that can distort the sound. Plus, the power amplifier can hold more advanced components that improve performance.
A great example of this is the Energy E7. Offering an impressive 270 watts of power for each of its seven channels when used with speakers that have a resistance of 4 ohms. Even when used with 8 ohm speakers, it still delivers 170 watts per channel for all seven channels. So, if you want high-quality sound without breaking the bank, this 7 channel amp is worth considering!
A Compelling Reason to Upgrade Your Home Theater Systems Performance
When you use a separate amplifier, it allows your speakers to realize their true performance potential. The Energy E7 7 Channel Amplifier is compatible with a wide range of speakers, from 170 watts 8 Ohms across all 7 channels, to 270 watts 4 Ohms across all 7 channels, we’re sure your speakers will take nicely to the Energy amp. Using either Balanced or Unbalanced inputs, all 7 channels will ensure a great connection to any preamplifier. The high performance toroidal transformers, and THD of <0.015% ensure a smooth sound stage, no matter where you’re seated in the room.
Using high current supply capacitors allows for maximum response to sonic transients. Action films come to life as you hear hear a thunderous explosion - the amp carries the weight and the large capacitors intervene as short-term electrical storage and "cushion" the peak, allowing the sound effects their own dimension and dynamic. Each Energy amplifier circuit also employs aluminum heat sinks for maximum heat dissipation.
The Energy Amplifier is a flexible, high performance amplifier. It has been designed for maximum performance, ease of use, and installation flexibility for small to large sized rooms. By employing cutting edge technology, the Energy Amp easily powers your speakers at high power levels, while at the same time remaining as efficient as possible regardless of volume levels. This maximizes the audio and video experience without concern for dynamic headroom during complex musical compositions and intense surround sound effects. Don't worry, the Energy Amp does it all with exceptionally refined cosmetics and a sound quality that will satisfy even the most discriminating tastes.
Energy 7 Channel Home Theater Power Amplifier – E7
APERION Energy Series amps are passively cooled with large heat sinks for efficiency and low noise operation. Featuring toroidal transformers with bi-filar windings ensures low noise and crosstalk, hallmarks of all Energy amplifiers.
The Energy 7 Channel Power Amplifier brings intensity, yielding impressive dynamics and opening up the sound stage of your home theater. Equipped with premium components and Aperion's technologies, this amplifier delivers pristine audio performance that is unwaveringly faithful to the source. It also provides enough bandwidth and deep power reserves to handle dynamic audio passages, so you'll enjoy exceptional audio during even the most audio-intensive movie scenes. With its efficient power consumption and durable design, the amplifier is a welcome addition to any home theater system, and is a perfect companion for any Preamplifier.
Powerful amplifier delivers exceptional, dynamic audio performance.
Specification
| Type: | 7 Channel Power Amplifier |
| Power Output (RMS) @ 1 Channel Driven: | 210W (8Ω, 1 Channel), 330W (4Ω, 1 Channel) |
| Power Output (RMS) @ All Channels Driven: | 170W (8Ω, All Channel), 270W (4Ω, All Channel) |
| Connections: | RCA Inputs and Balanced XLR-Inputs |
| SNR: | 96dB/RCA, 108dB/XLR |
| Distortion (THD+N): | ≤0.015% (Max Power at 1 kHz) |
| Frequency Response (+/-1dB): | 10 Hz-35 Khz |
| Power Supply: | 110 - 220 VAC (Automatically) |
| Transformer: | High-performance toroidal transformers |
| Max Power Consumption: | 2640 W @ 4ohm |
| Standby Consumption: | ＜0.5W |
| Input Sensitivity: | 1.3 V for Full Rated Power@8 ohms |
| Load Impedance: | 4 - 16 ohms |
| Input Impedance: | Nominally 50kΩ |
| Remote Trigger Voltage: | 5-24V |
| Capacitance | 40000 uF per channel |
| Product Weight: | 70 Lbs / 31.6 Kgs |
| Product Dimension: |
H 7.4" x W 17.2" x D 17" H 188mm x W 437mm x D 432mm |
| Shipping Weight: | 78 Lbs / 35.4 Kgs |
| Shipping Dimension: |
L 23" x W 22" x H 13" L 590mm x W 560mm x H 320mm |
Features
Class A/B 7 channel power amplifier
|
The E7 is a seven-channel power amplifier, and is perfect for powering the seven main channels of a 7.1 channel, or Dolby Atmos / DTS:X home theater system. Improved Channel Balance. |
High quality aluminum front faceplate
| The Energy Amp does it all with exceptionally refined cosmetics and a sound quality that will satisfy even the most discriminating tastes. |
Remote Trigger
| Trigger Input, This allows the amplifier controlled by a source or preamplifier device. Trigger Output: Link out to anther amplifier via 1/8" mono minicable. |
Led Logo Design
|
Turns on as a white light; the light will gradually become dark after 20-30 seconds; a red light means it is in Stand By mode. |
Protection Circuits
| Optically – coupled with full automatic reset, includes overtemperature protection circuit, Current foldback circuit, DC Output Driver units protection circuit, dual protection of high and low voltage automatic recognition switching circuit. |
Power Dynamics
| Energy amplifiers capable of delivering clear and clean audio across a wide dynamic range which can clearly and accurately articulate the quietest portions, the loudest portions, and everything in between. |
XLR&RCA Input
| Use the UNBALANCED RCA or BALANCED XLR INPUT jacks to connect to the outputs of a preamplifier or other control device |
Silent Cooling
| Oversized heat sinks, instead of fans, are used to keep the amplifier as cool and as silent as possible. No fans means less dust and a longer operating life for your equipment. |

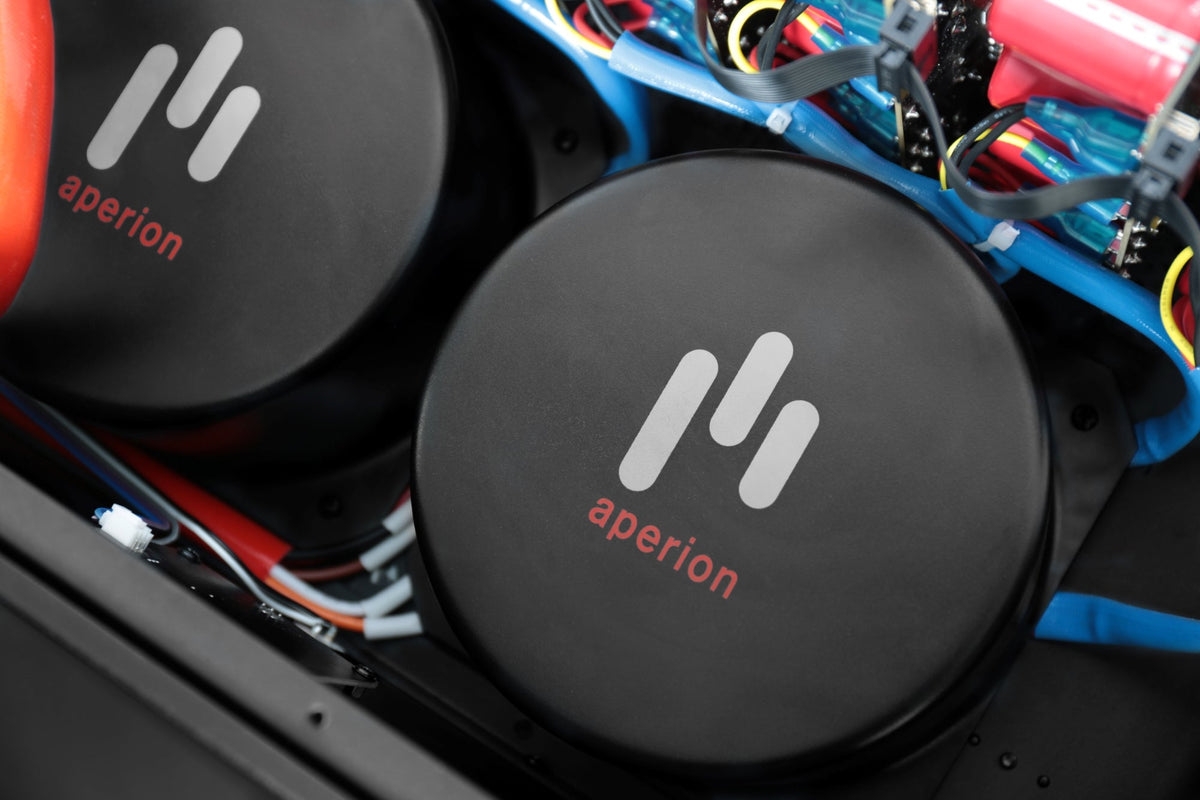

Toroid Transformers
| Featuring toroidal transformers with bi-filar windings ensures low noise and crosstalk, hallmarks of all Energy amplifiers. |
High current supply capacitors
| Using high current supply capacitors allows for maximum response to sonic transients. Action films come to life as you hear hear a thunderous explosion - the amp carries the weight and the large capacitors intervene as short-term electrical storage and "cushion" the peak, allowing the sound effects their own dimension and dynamic. |

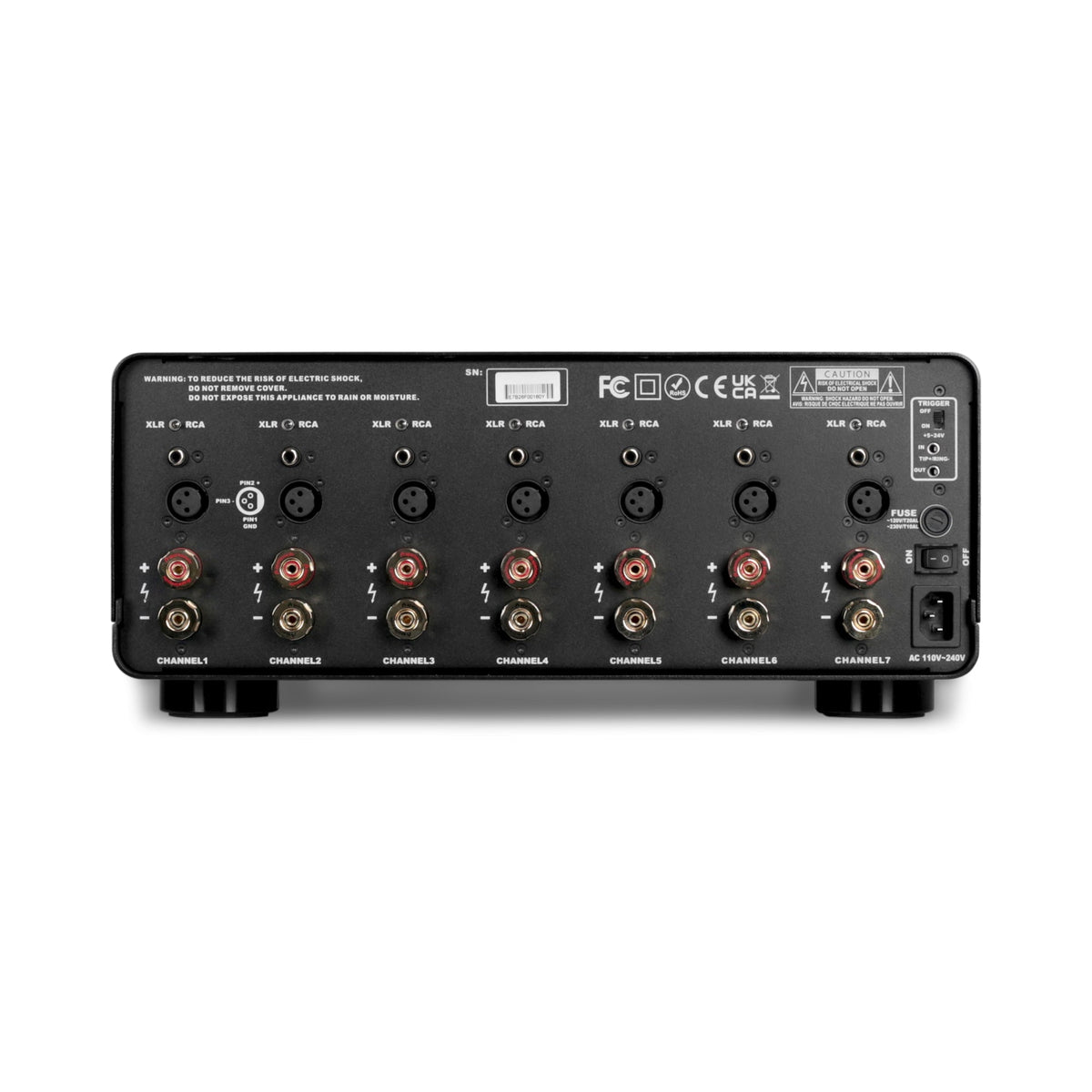

Getting to Know the Rear Panel
1. Input Selector Switch: Selects either the BALANCED INPUT (XLR) or the UN-BALANCED (RCA) INPUT jack.
2. Unbalanced RCA Audio Inputs: Use the UNBALANCED INPUT jacks to connect to the out-puts of a preamplifier, receiver with preout connections, CD player, or other source device with RCA style outputs.
3.Balanced XLR Audio Inputs: Use the BALANCED INPUT jacks to connect to the outputs of a preamplifier or other control device with XLR outputs.

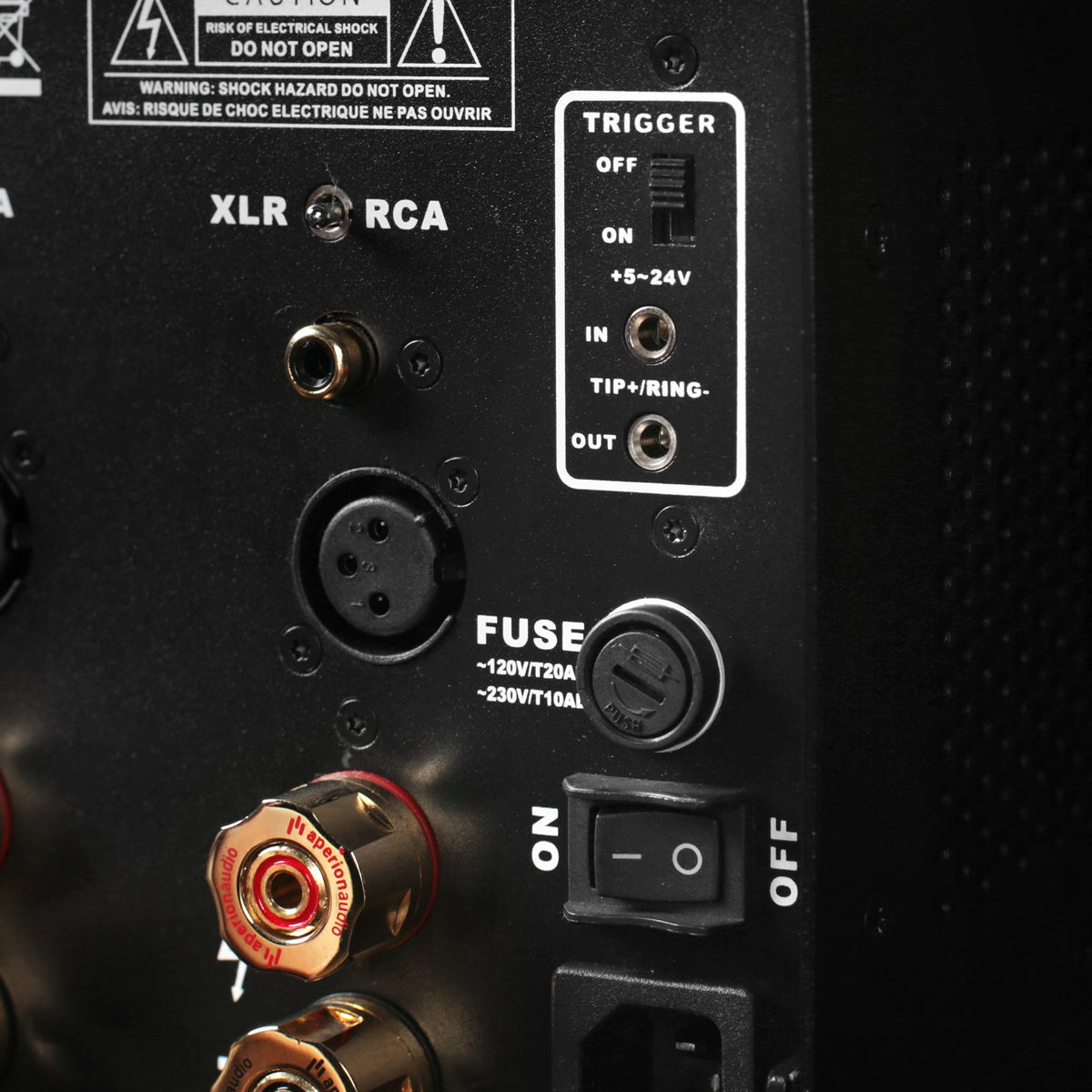

4.Trigger Input and Output Port: Trigger Input: This allows the amplifier controlled by a source or preamplifier device. Trigger Output: Link out to anther amplifier via 1/8" mono minicable.
5. Product Serial Number
6. Speaker Outputs: Use the OUTPUT binding posts to connect the amplifier to your Speakers, red for positive, black for negative.
7. Fuse
a. E2 uses 4A/230V& 8A/120V slow broken type fuse;
b. E3 uses 6A/230V& 12A/120V slow broken type fuse;
c. E5 uses 8A/230V& 15A/120V slow broken type fuse;
d. E7 uses 10A/230V& 20A/120V slow broken type fuse.
8. Master Power Switches: Turns the current to each bank of the amplifier on or off.
9. AC Input: Use the included power cords to connect your amplifier to an AC power source.
Key Features
- Remote Trigger: Activated from 5VDC to 24VDC
- Front Power Button: If you are not using the Remote Trigger function, a quick solid press of the power button will fire it up, and within about 5-15 seconds you should hear the amp channels click on. To power down, press and hold for about 2-3 seconds.
- Protection Circuits: Optically – coupled with full automatic reset, includes overheating protection circuit; Current foldback circuit, DC Output Driver units protection circuit; dual protection of high and low voltage automatic recognition switching circuit. Class AB cuircuitry design which is common with audiophile-grade amplifiers
- Toroid Transformers：Bi-filar windings for guarantee lower noise and crosstalk.
- Circuit Boards: Double-sided FR-4 glass epoxy, computer-grade boards.
- Soft Start Circuitry: Soft-start minimizes inrush current. Multiple units can be turned on without tripping circuit breakers, eliminating the need for sequencing the power up phase.
- Power Transistors: High current, TOSHIBA bipolar output transistors ensure optimized performance in real time, and work in push-pull.
- Silent Cooling: Oversized heat sinks, instead of fans, are used to keep the amplifier as cool and as silent as possible. No fans means less dust and a longer operating life for your equipment.
- Dynamics: Energy amplifiers capable of delivering clear and clean audio across a wide dynamic range which can clearly and accurately articulate the quietest portions, the loudest portions, and everything in between.
- Power Cord: Detachable, 3-wire power cord.
Package Content:
- Energy E7 Power Amplifier x one (1) Pcs
- Manual Download Card x one (1) Pcs
- Power Cord x one (1) Pcs
- Trigger Cable x one (1) Pcs
